285-635 | WAGO

2-wire feed-through terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, gray, 285-635

Order No.: 09P0050
EAN: 4045454218713
MPN:
285-635
Series: 285
WAGO
default L
Image may differ
Unit Price (€ / pc.)
15.6604 € *
Available: 11 pcs.
Leadtime: 4 Weeks **
Total Price:
15.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.6604 €

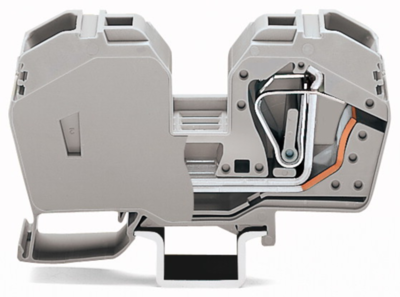

Through terminal block, 285-635, WAGO

2-conductor through terminal block, 35 mm², with integrated end plate, side and center marking, only for DIN 35 x 15 rail, CAGE CLAMP, 35,00 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 2
Version 2-wire feed-through terminal
AWG cross-section AWG 10 to 2
Rated Voltage 1000 V
Rated surge voltage 8 kV
Width 16 mm
Colour gray
Height 100 mm
Length 53 mm
Cable cross-section 6.0-35 mm²
Rated current 125 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
