284-681 | WAGO

3-wire feed-through terminal, spring-clamp connection, 0.2-10 mm², 1 pole, 57 A, 8 kV, gray, 284-681

Order No.: 09P0047
EAN: 4044918447379
MPN:
284-681
Series: 284
WAGO
default L
Image may differ
Unit Price (€ / pc.)
7.2471 € *
Available: 198 pcs.
Leadtime: 4 Weeks **
Total Price:
7.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.2471 €

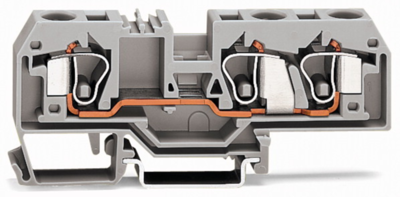

Through terminal block, 284-681, WAGO

3-conductor through terminal block, 10 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 10,00 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire feed-through terminal
AWG cross-section AWG 24 to 8
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 10 mm
Colour gray
Height 97.5 mm
Length 35 mm
Cable cross-section 0.2-10 mm²
Rated current 57 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Version
Length
Height
Colour
Number of terminals
Cable cross-section
Rated Voltage
Width
Pin number
Connection
AWG cross-section
Rated current
1 item in 4 variations
