281-652 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 26 A, 8 kV, gray, 281-652

Order No.: 09P0037
EAN: 4044918486354
MPN:
281-652
Series: 281
WAGO
default L
Image may differ
Unit Price (€ / pc.)
1.9992 € *
Available: 50 pcs.
Leadtime: 6 Weeks **
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9992 €
25 pcs.
1.8088 €
100 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

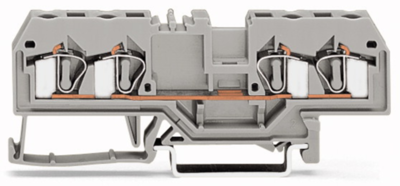

Through terminal block, 281-652, WAGO

4-conductor through terminal block, 4 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 4,00 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 4
Version 4-wire feed-through terminal
AWG cross-section AWG 28 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6 mm
Colour gray
Height 86 mm
Length 29 mm
Cable cross-section 0.08-4.0 mm²
Rated current 26 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
