264-715 | WAGO
2 wire mini through terminal, cage clamp, 0.08-2.5 mm², 1 pole, 24 A, 8 kV, black, 264-715
Unit Price (€ / pc.)
1.0948 € *
Standard delivery time from the manufacturer is: 4 Weeks

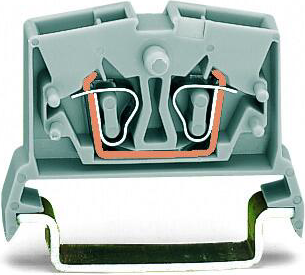

2-conductor miniature through terminal block, 264-715, WAGO
2-conductor miniature through terminal block, 2.5 mm² with test option, suitable for Ex e II applications, DIN-rail 35x15, 35x7.5, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2 wire mini through terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.08-2.5 mm² | |
| AWG cross-section | AWG 28 to 12 | |
| Rated surge voltage | 8 kV | |
| Rated current | 24 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 24.5 mm | |
| Width | 6 mm | |
| Height | 38 mm | |
| Connection | cage clamp | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
