226-114 | WAGO

Through terminal block, cage clamp, 0.08-4.0 mm², 1 pole, 20 A, 4 kV, gray, 226-114

Order No.: 45P8360
EAN: 4044918794442
MPN:
226-114
Series: 226

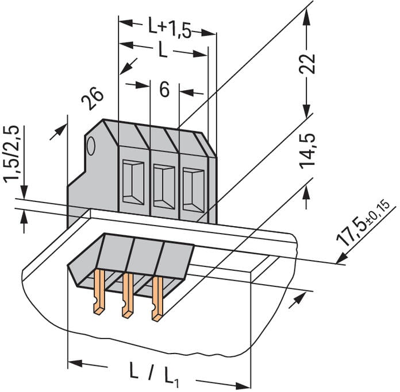

226-114 WAGO Series Terminals Image 1

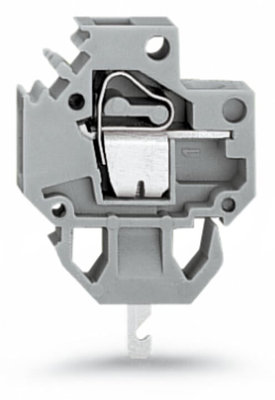

226-114 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0341 €
10 pcs.
3.7485 €
50 pcs.
3.4153 €
100 pcs.
3.0702 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feedthrough terminal block, 226-114, WAGO

The feed-through terminal with article number 226-114 enables simple and secure connection. Rely on proven safety for the design-in of your device: the feed-through terminal can be used in a variety of ways. This feed-through terminal requires insulation stripping with a length between 9 and 10 mm for the conductor connection. This product, with 2 conductor connections, uses CAGE CLAMP and solder connection technology. The reliable and maintenance-free CAGE CLAMP universal connection enables the connection of any conductor type with a cage clamp. Pre-treatment of the conductor, e.g. by crimping on a wire end ferrule, is not necessary. The dimensions are (6 x 38.5 x 26) mm in width x height x depth. Depending on the conductor type, this feed-through terminal is suitable for a conductor cross-section from 0.08 mm² to 4 mm². The surface of the contact is made of tin. This feed-through terminal is operated using an actuating tool.

Technical specifications
Version feed through terminal
Number of terminals 1
Pin number 1 pole
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 4 kV
Rated current 20 A
Rated Voltage 320 V
Degree of soiling 2
Length 26 mm
Width 6 mm
Height 38.5 mm
Connection cage clamp
Colour gray
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
