226-113 | WAGO

Feedthrough terminal block, 226-113, WAGO

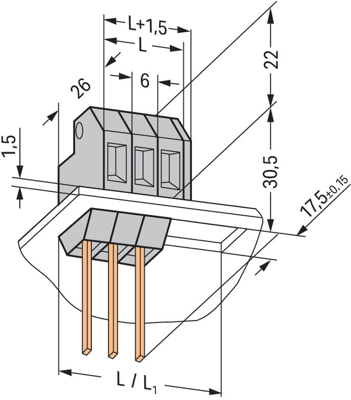

This feed-through terminal block (article number 226-113) focuses on a fast and secure connection. Rely on reliable safety for the design-in of your device: the feed-through terminal can be used in a variety of ways. A stripping length of 9 to 10 mm is required for the conductor connection with this feed-through terminal. This product is equipped with 2 conductor connections as well as CAGE CLAMP and connection pin technology. The CAGE CLAMP universal connection provides you with a reliable and maintenance-free connection technology for connecting any type of conductor using a cage clamp. No pre-treatment of the conductor is necessary, for example by crimping on a wire end ferrule. The dimensions are width x height x depth (6 x 52.5 x 26) mm. Depending on the type of conductor, this feed-through terminal is made for a conductor cross-section from 0.08 mm² to 4 mm². The contact surface is made of tin. This feed-through terminal is actuated using an actuating tool.
