226-111 | WAGO

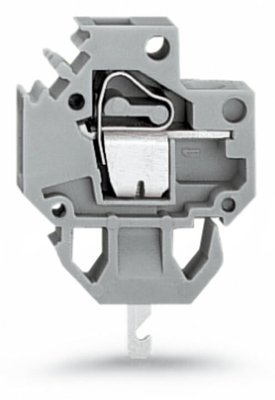

Through terminal block, cage clamp, 0.08-4.0 mm², 1 pole, 20 A, 4 kV, gray, 226-111
Feedthrough terminal block, 226-111, WAGO

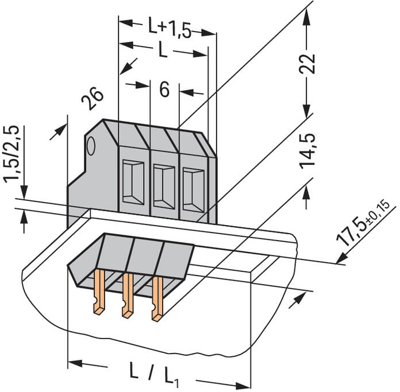

The feed-through terminal with article number 226-111 enables a simple and secure connection. Rely on reliable safety for the design-in of your device: the feed-through terminal can be used in a variety of ways. This feed-through terminal requires a stripping length of 9 to 10 mm for the conductor connection. This product, with a total of 2 conductor connections, uses CAGE CLAMP and solder connection technology. The reliable and maintenance-free CAGE CLAMP universal connection enables the connection of any conductor type with a cage clamp. Pre-treatment of the conductor, e.g. by crimping on a wire end ferrule, is not necessary. The dimensions are (6 x 36.5 x 26) mm in width x height x depth. Depending on the type of conductor, this feed-through terminal is suitable for a conductor cross-section from 0.08 mm² to 4 mm². Tin was used for the surface of the contact. This feed-through terminal is actuated using an actuating tool.
Version | feed through terminal | |
Number of terminals | 1 | |
Pin number | 1 pole | |
Cable cross-section | 0.08-4.0 mm² | |
AWG cross-section | AWG 28 to 12 | |
Rated surge voltage | 4 kV | |
Rated current | 20 A | |
Rated Voltage | 320 V | |
Degree of soiling | 2 | |
Length | 26 mm | |
Width | 6 mm | |
Height | 36.5 mm | |
Connection | cage clamp | |
Colour | gray |
Customs tariff number | 85369010 |
Country of origin | DE |
SVHC free | No |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
