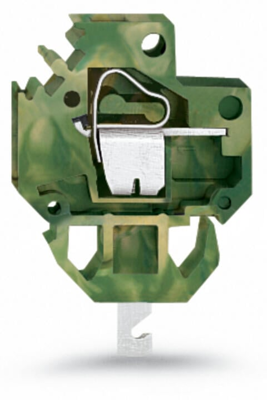

Ground conductor feedthrough terminal block, 226-107, WAGO

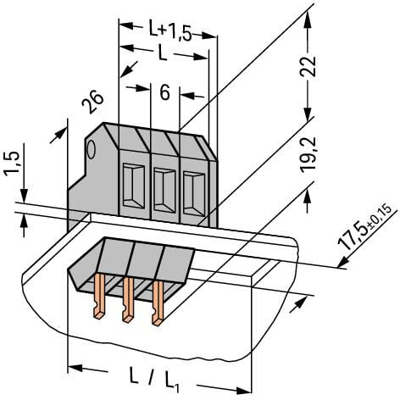

The feed-through terminal block with article number 226-107 focuses on a fast and reliable connection. With this feed-through terminal block, you get an integrated connector system that can be used in a variety of ways: as a PCB connector, as a feed-through connector, as a flying plug connection for various types of assembly, or as a connector on a terminal block. This feed-through terminal requires a stripping length of 9 to 10 mm for the conductor connection. This product is equipped with 2 conductor connections as well as CAGE CLAMP and solder connection technology. The reliable and maintenance-free CAGE CLAMP universal connection offers the possibility of connecting any type of conductor with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are (6 x 41.2 x 26) mm in width x height x depth. Depending on the conductor type, this feed-through terminal is suitable for a conductor cross-section from 0.08 mm² to 4 mm². Tin was used for the surface of the contact. This feed-through terminal is actuated using an actuating tool.
