226-104 | WAGO

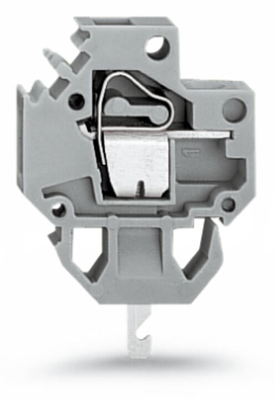

Through terminal block, cage clamp, 0.08-4.0 mm², 1 pole, 20 A, 4 kV, gray, 226-104
Feedthrough terminal block, 226-104, WAGO

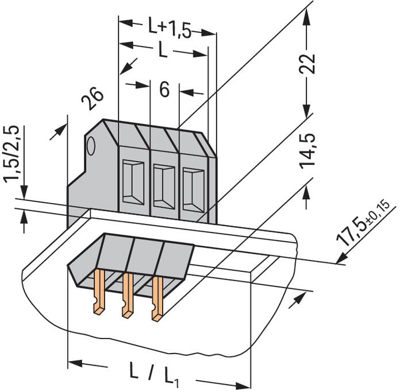

This feed-through terminal block (article number 226-104) focusses on a simple and safe connection. Rely on proven safety for the design-in of your device: feed-through terminals offer you a wide range of possible uses. Stripping lengths of 9 to 10 mm are required for the conductor connection with this feed-through terminal. This product with its 2 conductor connections utilises CAGE CLAMP and solder connection technology. The reliable and maintenance-free CAGE CLAMP universal connection enables the connection of all conductor types with a cage clamp. Pre-treatment of the conductors, e.g. by crimping on wire end ferrules, is not necessary. The dimensions are width x height x depth (6 x 36.5 x 26) mm. Depending on the conductor type, this feed-through terminal is suitable for conductor cross-sections from 0.08 mm² to 4 mm². The surface of the contacts is made of tin. This feed-through terminal is actuated using an actuating tool.
Version | feed through terminal | |
Number of terminals | 1 | |
Pin number | 1 pole | |
Cable cross-section | 0.08-4.0 mm² | |
AWG cross-section | AWG 28 to 12 | |
Rated surge voltage | 4 kV | |
Rated current | 20 A | |
Rated Voltage | 320 V | |
Degree of soiling | 2 | |
Length | 26 mm | |
Width | 6 mm | |
Height | 36.5 mm | |
Connection | cage clamp | |
Colour | gray |
Customs tariff number | 85369010 |
Country of origin | DE |
SVHC free | No |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
