226-102 | WAGO

Through terminal block, cage clamp, 0.08-4.0 mm², 1 pole, 4 A, 4 kV, gray, 226-102

Order No.: 45P8361
EAN: 4045454071677
MPN:
226-102
Series: 226

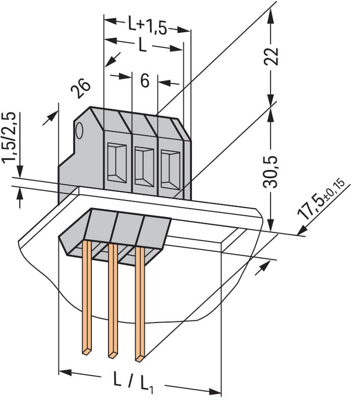

226-102 WAGO Series Terminals Image 1

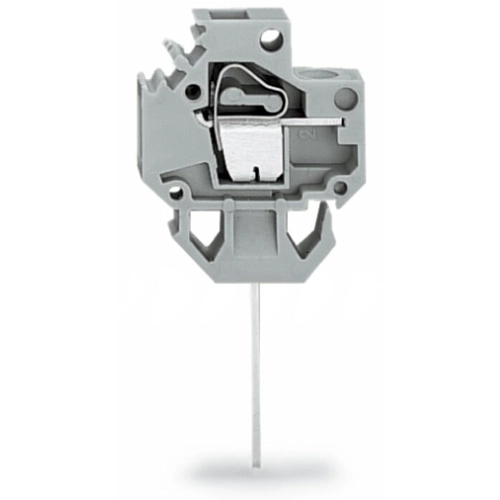

226-102 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.4744 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.47 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4744 €
10 pcs.
4.1650 €
50 pcs.
3.7842 €
100 pcs.
3.4034 €
*incl. VAT plus shipping costs
Subject to prior sale

Feedthrough terminal block, 226-102, WAGO

This feed-through terminal block (article number 226-102) focuses on a simple and reliable connection. With this feed-through terminal block, you get a universal connector system that can be used in a variety of ways: as a PCB connector, as a feed-through connector, as a flying lead-through connector for various types of assembly, or as a connector on a terminal block. This feed-through terminal requires insulation stripping with a length between 9 and 10 mm for the conductor connection. This product, with its 2 conductor connections, utilizes CAGE CLAMP and winding pin technology. The reliable and maintenance-free CAGE CLAMP universal connection offers the possibility of connecting any type of conductor with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are width x height x depth (6 x 52.5 x 26) mm. Depending on the conductor type, this feed-through terminal is suitable for a conductor cross-section from 0.08 mm² to 4 mm². Tin was used for the surface of the contact. This feed-through terminal is actuated by an actuating tool.

Technical specifications
Filter Property Value
Version feed through terminal
Number of terminals 1
Pin number 1 pole
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 4 kV
Rated current 4 A
Rated Voltage 320 V
Degree of soiling 2
Length 26 mm
Width 6 mm
Height 52.5 mm
Connection cage clamp
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
