226-101 | WAGO

Through terminal block, cage clamp, 0.08-4.0 mm², 1 pole, 20 A, 4 kV, gray, 226-101

Order No.: 45P8357
EAN: 4044918794350
MPN:
226-101
Series: 226

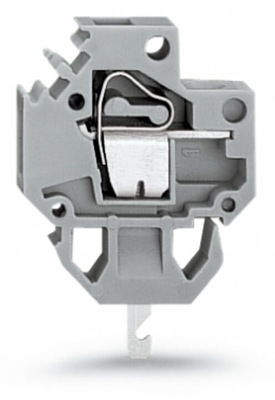

226-101 WAGO Series Terminals Image 1

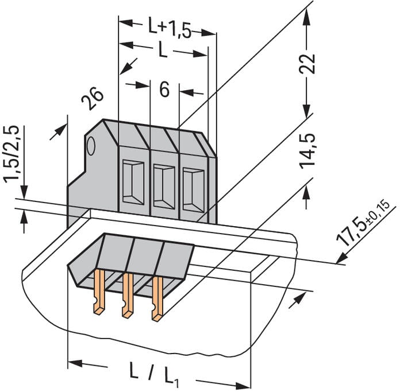

226-101 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
3.5581 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3.56 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5581 €
10 pcs.
3.3082 €
50 pcs.
3.0107 €
100 pcs.
2.7132 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feedthrough terminal block, 226-101, WAGO

The feed-through terminal block with article number 226-101 enables simple and reliable wiring. Rely on proven safety for the design-in of your device: the feed-through terminal offers you a wide range of possible uses. A stripping length of 9 to 10 mm is required for the conductor connection with this feed-through terminal. This product with its 2 conductor connections utilizes CAGE CLAMP and solder connection technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect any type of conductor with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are width x height x depth (6 x 36.5 x 26) mm. Depending on the conductor type, this feed-through terminal is suitable for a conductor cross-section from 0.08 mm² to 4 mm². The surface of the contact is made of tin. This feed-through terminal is operated using an actuating tool.

Technical specifications
Version feed through terminal
Number of terminals 1
Pin number 1 pole
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 4 kV
Rated current 20 A
Rated Voltage 320 V
Degree of soiling 2
Length 26 mm
Width 6 mm
Height 36.5 mm
Connection cage clamp
Colour gray
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
