2250-301 | WAGO

2 wire mini through terminal, push-in connection, 0.14-1.5 mm², 2 pole, 13.5 A, 6 kV, gray, 2250-301

Order No.: 09H3071
EAN: 4055143965613
MPN:
2250-301
Series: 2250
WAGO
default L
Image may differ
Unit Price (€ / pc.)
1.19 € *
Available: 131 pcs.
Leadtime: On Request **
Total Price:
1.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.19 €

Terminal block, 2250-301, Wago

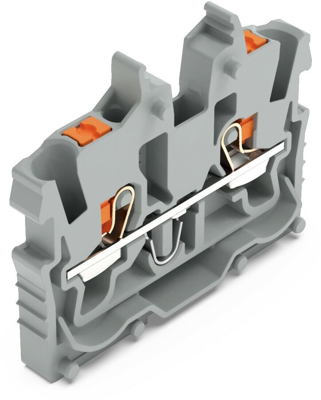

2-conductor miniature through terminal block, with push-button, 1 mm², with test port, side and center marking, End terminal block with mounting flange, Push-in CAGE CLAMP®, 1,00 mm², gray.

Technical specifications
Connection push-in connection
Number of terminals 2
Version 2 wire mini through terminal
AWG cross-section AWG 24 to 16
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 3.5 mm
Colour gray
Height 27.2 mm
Length 33.2 mm
Cable cross-section 0.14-1.5 mm²
Rated current 13.5 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
