2202-3217 | WAGO
Protective conductor/feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 22 A, 6 kV, gray, 2202-3217
Unit Price (€ / pc.)
6.8425 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

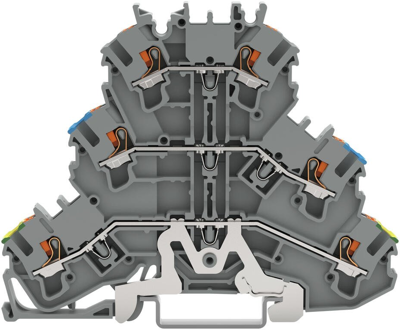

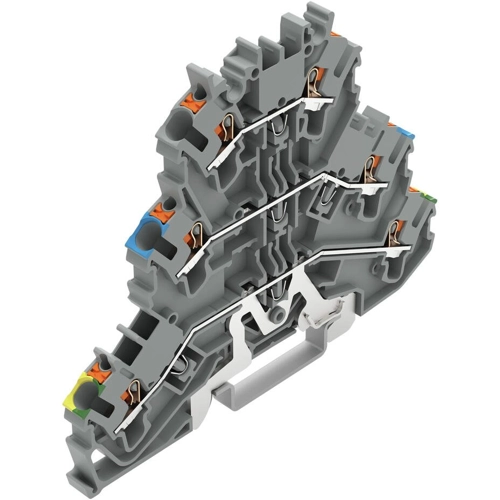

Terminal block, 2202-3217, WAGO
Triple-deck terminal block, Ground conductor/through/through terminal block, with push-button, 2.5 mm², PE/N/L, suitable for Ex e II applications, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Colour | gray | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 22 A | |

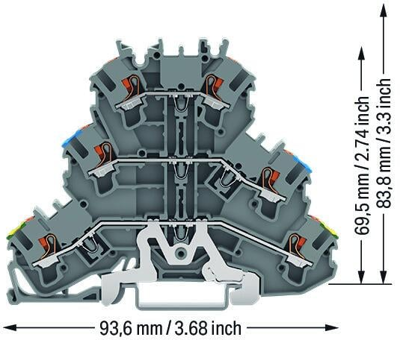

| Width | 5.2 mm | |
| Height | 93.6 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Number of terminals | 6 | |
| Pin number | 3 pole | |
| Version | Protective conductor/feed-through/feed-through terminal block | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
