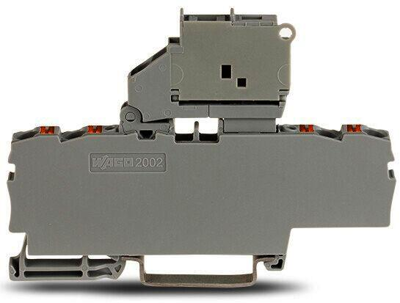

2202-1812 | WAGO
4-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 6.3 A, 6 kV, orange, 2202-1812
Unit Price (€ / pc.)
7.0924 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Terminal block, 2202-1812, WAGO
4-conductor fuse terminal block, with pivoting fuse holder, and end plate, for 5 x 20 mm miniature metric fuse, with push-button, without blown fuse indication, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², orang.
Technical specifications
| Colour | orange | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 6.3 A | |
| Width | 6.2 mm | |
| Height | 87.5 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Number of terminals | 4 | |
| Pin number | 1 pole | |
| Version | 4-wire fuse terminal | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
