2050-1207 | WAGO

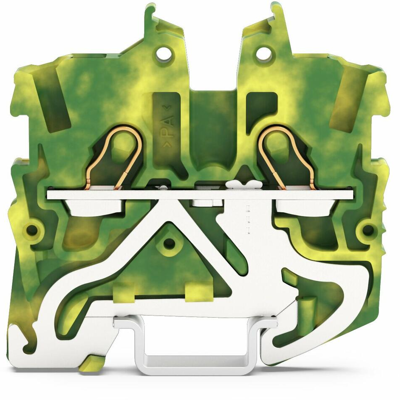

2 wire mini protective earth terminal block, push-in connection, 0.14-1.5 mm², 2 pole, 13.5 A, 6 kV, yellow/green, 2050-1207

Order No.: 09H3042
EAN: 4055143981545
MPN:
2050-1207
Series: 2050
WAGO
default L
Image may differ
Unit Price (€ / pc.)
3.9032 € *
Available: 90 pcs.
Leadtime: On Request **
Total Price:
3.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9032 €

Terminal block, 2050-1207, Wago

2-conductor miniature ground terminal block, with operating slots, 1 mm², with test port, side and center marking, for DIN-15 rail, Push-in CAGE CLAMP®, 1,00 mm², green-yellow.

Technical specifications
Connection push-in connection
Number of terminals 2
Version 2 wire mini protective earth terminal block
AWG cross-section AWG 24 to 16
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 3.5 mm
Colour yellow/green
Height 34.1 mm
Length 27.9 mm
Cable cross-section 0.14-1.5 mm²
Rated current 13.5 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
