1-wire start module, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 6 kV, gray, 2022-161

Order No.: 43P1168
EAN: 4050821243311
MPN:
2022-161
Series: 2022
WAGO
default L
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 132 pcs.
Leadtime: 9 Weeks **
Total Price:
0.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.9639 €

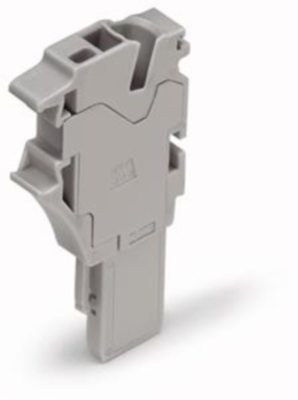

Start module, 2022-161, WAGO

Start module for 1-conductor female connector, Push-in CAGE CLAMP, 4 mm², Pin spacing 5.2 mm, 1-pole, with integrated end plate, 4,00 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 1
Version 1-wire start module
AWG cross-section AWG 22 to 12
Rated Voltage 690 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 40.5 mm
Length 22.4 mm
Cable cross-section 0.25-4.0 mm²
Rated current 24 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Version
Colour
Cable cross-section
Rated Voltage
Width
Length
Pin number
Height
Connection
AWG cross-section
Rated current
Number of terminals
1 item in 6 variations
