2004-1306 | WAGO

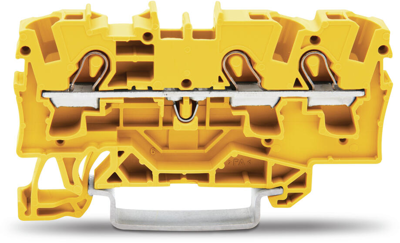

3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, yellow, 2004-1306

Order No.: 09H4635
EAN: 4045454537487
MPN:
2004-1306
Series: 2004
WAGO
default L
Image may differ
Print
Key Specification:
Version 3-wire feed-through terminal
Number of terminals 3
Pin number 1 pole
Cable cross-section 0.5-6.0 mm²
AWG cross-section AWG 20 to 10
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Add to Cart
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.3923 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Through terminal block, 2004-1306, Wago

3-wire through terminal suitable for Ex e II applications yellow
Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire feed-through terminal
AWG cross-section AWG 20 to 10
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.2 mm
Colour yellow
Height 65.5 mm
Length 32.9 mm
Cable cross-section 0.5-6.0 mm²
Rated current 32 A
Pin number 1 pole
Degree of soiling 3
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Version
Colour
Rated current
Unit:
Cable cross-section
Rated Voltage
Width
Unit:
Length
Unit:
Pin number
Height
Unit:
Connection
AWG cross-section
Number of terminals
1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Total
Version
Colour
Rated current
Cable cross-section
Rated Voltage
Width
Length
Pin number
Height
Connection
AWG cross-section
Number of terminals
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, orange, 2004-1302
Manufacturer SKU:
 2004-1302
1 pcs. 1.5351 €
10 pcs. 1.3923 €
100 pcs. 1.2495 €
1.5351 € - 1.2495 €
0 pcs.
1.54 € *
3-wire feed-through terminal
orange
32 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, red, 2004-1303
Manufacturer SKU:
 2004-1303
1 pcs. 1.5351 €
10 pcs. 1.3923 €
100 pcs. 1.2495 €
1.5351 € - 1.2495 €
0 pcs.
1.54 € *
3-wire feed-through terminal
red
32 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, yellow, 2004-1306
Manufacturer SKU:
 2004-1306
1 pcs. 1.5351 €
10 pcs. 1.3923 €
100 pcs. 1.2495 €
1.5351 € - 1.2495 €
0 pcs.
1.54 € *
3-wire feed-through terminal
yellow
32 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
3-wire protective earth terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 22 A, 8 kV, yellow/green, 2004-1307
Manufacturer SKU:
 2004-1307
1 pcs. 3.7961 €
10 pcs. 3.4153 €
100 pcs. 3.0821 €
3.7961 € - 3.0821 €
0 pcs.
3.80 € *
3-wire protective earth terminal
yellow/green
22 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, black, 2004-1305
Manufacturer SKU:
 2004-1305
1 pcs. 1.5351 €
10 pcs. 1.3923 €
100 pcs. 1.2495 €
1.5351 € - 1.2495 €
0 pcs.
1.54 € *
3-wire feed-through terminal
black
32 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, gray, 2004-1301
Manufacturer SKU:
 2004-1301
1 pcs. 1.4280 €
10 pcs. 1.2852 €
100 pcs. 1.1543 €
1.4280 € - 1.1543 €
0 pcs.
1.43 € *
3-wire feed-through terminal
gray
32 A
0.5-6.0 mm²
800 V
6.2 mm
32.9 mm
1 pole
65.5 mm
spring-clamp connection
AWG 20 to 10
3
