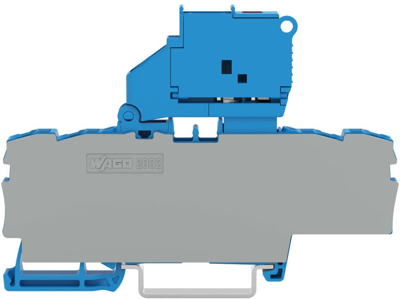

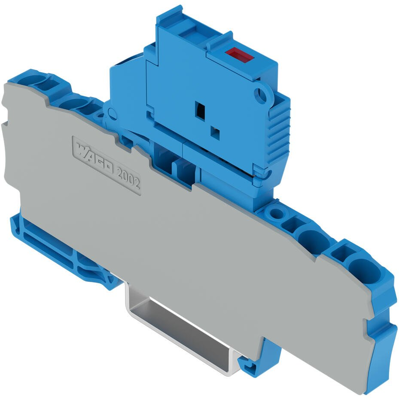

4-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 6.3 A, 6 kV, blue, 2002-1814/1000-867
2-conductor fuse terminal block, 2002-1814/1000-867, WAGO
A quick and easy connection is guaranteed with this fuse terminal block (item number 2002-1814/1000-867). A conductor can only be connected to this fuse terminal block if its strip length is between 10 mm and 12 mm. This product features a conductor terminal and utilizes Push-in CAGE CLAMP. This Push-in CAGE CLAMP is a universal, maintenance-free connection solution for any conductor type, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the conductor type, this fuse terminal block is ideal for conductor cross sections ranging from 0.25 mm² to 4 mm². It features one level and four clamping points for connecting a single potential. The blue housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.
Filter | Property | Value |
---|---|---|
Rated Voltage | 250 V | |
Number of terminals | 4 | |
Height | 87.5 mm | |
Degree of soiling | 3 | |
AWG cross-section | AWG 22 to 12 | |
Width | 6.2 mm | |
Cable cross-section | 0.25-4.0 mm² | |
Connection | spring-clamp connection | |
Colour | blue | |
Rated current | 6.3 A | |
Version | 4-wire fuse terminal | |
Rated surge voltage | 6 kV |
Property | Value |
---|---|
Country of origin | CN |
Customs tariff number | 85369095 |
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
RoHS conform | Yes |
