2000-5311 | WAGO

3-wire initiator terminal, push-in connection, 0.14-1.5 mm², 4 pole, 13.5 A, 4 kV, gray, 2000-5311

Order No.: 43P1000
EAN: 4055143393447
MPN:
2000-5311
Series: 2000
WAGO
default L
front L
Image may differ
Unit Price (€ / pc.)
6.3665 € *
Available: 83 pcs.
Leadtime: 3 Weeks **
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.7358 €
50 pcs.
5.1527 €
*incl. VAT plus shipping costs
**Subject to prior sale

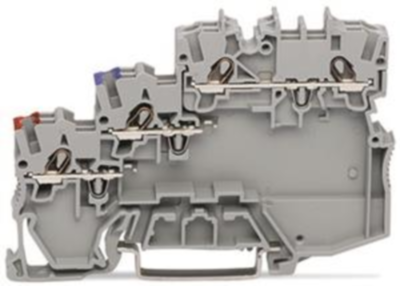

Sensor terminal block, 2000-5311, WAGO

3-conductor sensor terminal block, with colored conductor entries, 1 mm², Push-in CAGE CLAMP, 1,00 mm², gray.

Technical specifications
Connection push-in connection
Number of terminals 8
Version 3-wire initiator terminal
AWG cross-section AWG 24 to 16
Rated Voltage 250 V
Rated surge voltage 4 kV
Width 7 mm
Colour gray
Height 81.1 mm
Length 52.4 mm
Cable cross-section 0.14-1.5 mm²
Rated current 13.5 A
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
