2000-2227/099-000 | WAGO
Double level terminal, spring-clamp connection, 0.14-1.5 mm², 2 pole, 13.5 A, 8 kV, gray, 2000-2227/099-000
Unit Price (€ / pc.)
3.9627 € *
Available: 0 pcs.
Leadtime: On Request **

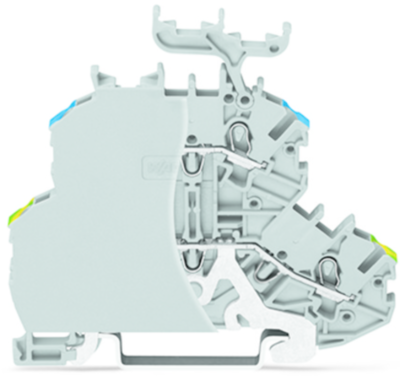

Double-deck terminal block, 2000-2227/099-000, WAGO
Double-deck terminal block, Shield/through terminal block, with end plate, 1 mm², PE/L, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,00 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | double level terminal | |
| AWG cross-section | AWG 24 to 16 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 4.2 mm | |
| Colour | gray | |
| Height | 69.7 mm | |
| Length | 51.7 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 13.5 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
