2000-1301 | WAGO

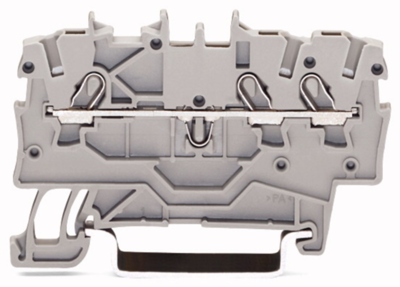

3-wire feed-through terminal, push-in connection, 0.14-1.5 mm², 1 pole, 13.5 A, 8 kV, gray, 2000-1301

Order No.: 09H4011
EAN: 4045454966843
MPN:
2000-1301
Series: 2000
WAGO
default L
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available: 95 pcs.
Leadtime: 2 Weeks **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9163 €
100 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale

Through terminal block, 2000-1301, WAGO

3-conductor through terminal block, 1 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,00 mm², gray.

Technical specifications
Connection push-in connection
Number of terminals 3
Version 3-wire feed-through terminal
AWG cross-section AWG 24 to 16
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 3.5 mm
Colour gray
Height 58.2 mm
Length 32.9 mm
Cable cross-section 0.14-1.5 mm²
Rated current 13.5 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
