756-9201/040-000 | WAGO

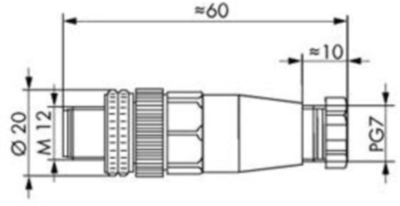

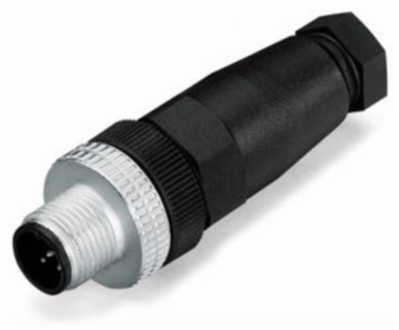

Plug, M12, 4 pole, screw connection, straight, 756-9201/040-000
Unit Price (€ / pc.)
14.5418 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor-actuator connector, 756-9201/040-000, WAGO
Features
- Connection via screw clamp technology
- Degree of protection: IP67
- A-coded
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
