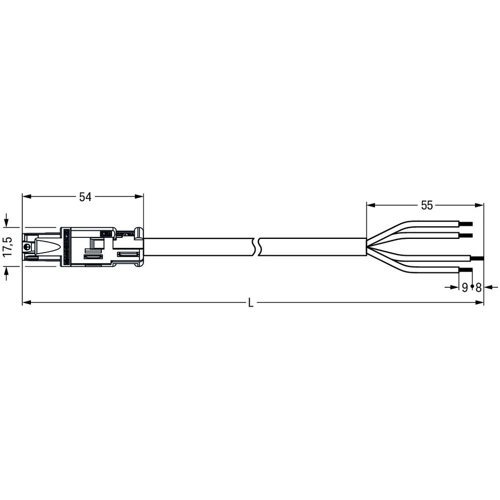

Connection cable, 3 m, socket straight to open end, 1.5 mm², 774-9994/116-302
Unit Price (€ / pc.)
25.8349 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9994/116-302, WAGO
This Connecting line provides the foundation for assembly of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. This product fits perfectly into boreholes or conduits thanks to its design.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in many general mains applications
- Ready to install and use immediately
- Rapid, structured electrical installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Cable length | 3 m | |
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Connection (1) | socket | |
| Connection 1 design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
