774-9994/116-201 | WAGO

Connection cable, 2 m, socket straight to open end, 1.5 mm², 774-9994/116-201

Order No.: 44P8416
EAN: 4045454346119
MPN:
774-9994/116-201
Series: WINSTA RD

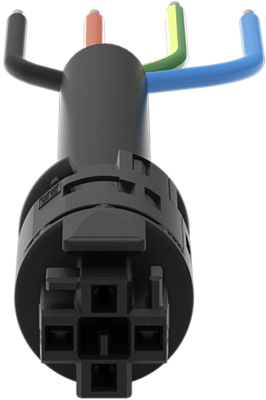

774-9994/116-201 WAGO Pre-assembled Connector Systems Image 1

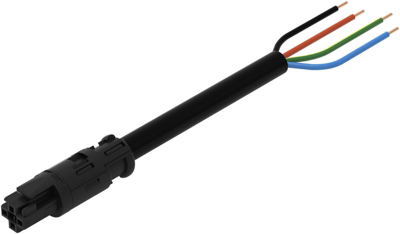

774-9994/116-201 WAGO Pre-assembled Connector Systems Image 2

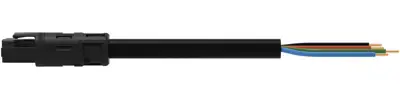

774-9994/116-201 WAGO Pre-assembled Connector Systems Image 3

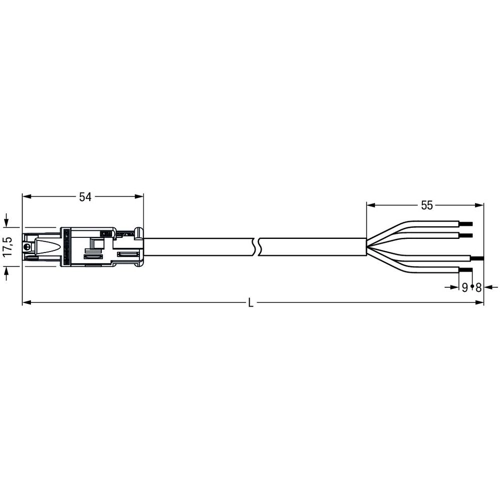

774-9994/116-201 WAGO Pre-assembled Connector Systems Image 4
774-9994/116-201 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
21.8841 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.8841 €

Connection cable, 774-9994/116-201, WAGO

This Connecting line supports rapid, correct installation. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This product features a round design that is ideal for use in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. This product meets all the mandatory safety requirements of fire class E; thus it can be used in areas where fire safety is relevant.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for use in many general mains applications
  • Ready to install and use immediately
  • Convenient installation and commissioning
Technical specifications
Cable length 2 m
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
