774-9994/106-201 | WAGO
Connection cable, 2 m, socket straight to open end, 1.5 mm², 774-9994/106-201
Unit Price (€ / pc.)
15.9222 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

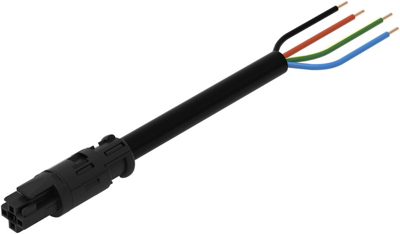

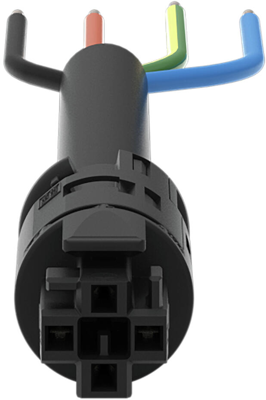

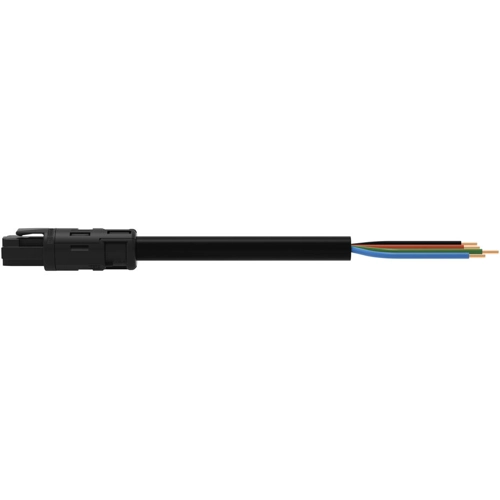

Connection cable, 774-9994/106-201, WAGO
Connecting line with locking latch. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This product fits into drill holes and conduits with diameters up to 20 mm.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a large number of applications
- Quick replacement of defective units during ongoing operation
Technical specifications
| Cable length | 2 m | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
