774-9994/106-101 | WAGO

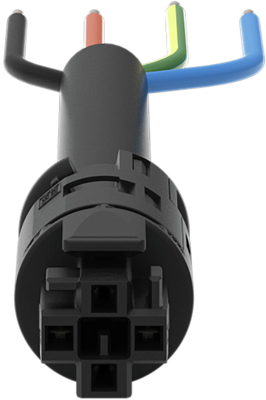

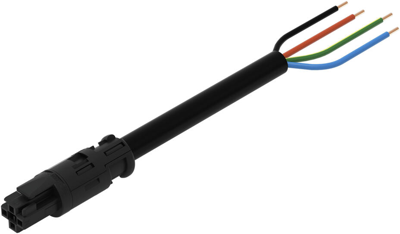

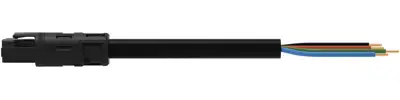

Connection cable, 1 m, socket straight to open end, 1.5 mm², 774-9994/106-101
Unit Price (€ / pc.)
14.0420 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9994/106-101, WAGO
This Connecting line allows assembly of solid and fine-stranded conductors. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.
This product features a round design that is very good for installation in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. This product meets all the relevant fire protection requirements of fire class E; thus it can be used in domains where fire safety is relevant.
Features
- With A coding for a large number of uses
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 1 m | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
