774-9993/106-702 | WAGO

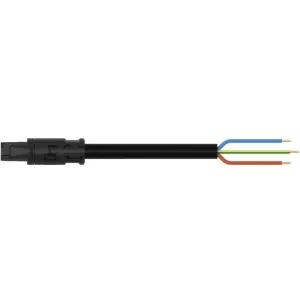

Connection cable, 7 m, socket straight to open end, 1.5 mm², 774-9993/106-702
Unit Price (€ / pc.)
16.3863 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 774-9993/106-702, WAGO
Connecting line with locking latch for power and signal transmission. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
This product features a round design that is perfect for installation in conduits with an inner diameter of 20 mm, such as in construction of prefabricated houses. This product meets all the mandatory fire protection requirements of fire class E; thus it can be used in domains where fire safety is relevant.
Features
- Flexible installation to save space
- Suitable for any application
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Cable length | 7 m | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
