774-9993/007-802 | WAGO

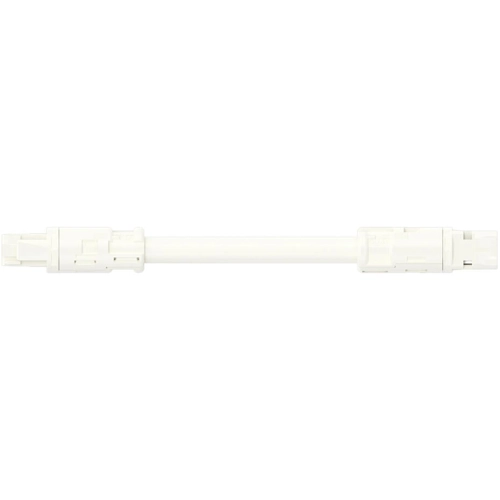

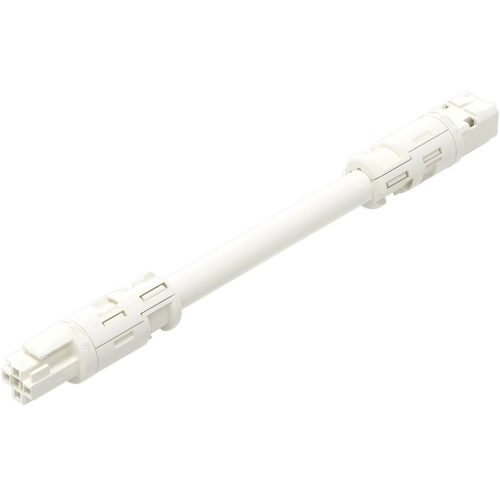

Connection cable, 8 m, socket straight to plug straight, 2.5 mm², 774-9993/007-802
Unit Price (€ / pc.)
30.9638 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Pre-assembled interconnecting cable, 774-9993/007-802, WAGO
This Connecting line allows installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This pluggable installation connector can be employed for a load of up to 20 A. As a result, it can also be used for high power loads. It is suitable for drill holes and conduits with diameters up to 20 mm.
Features
- With A coding for a great number of applications
- Guarantees safe use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Cable length | 8 m | |
| Connection 2 design | straight | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
