774-9973/106-805 | WAGO

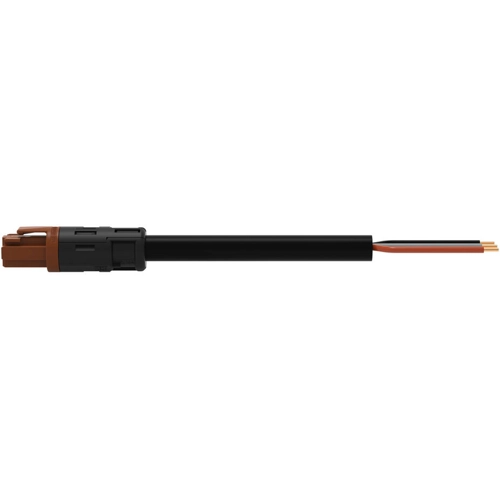

Connection cable, 8 m, socket straight to open end, 1.5 mm², 774-9973/106-805
Unit Price (€ / pc.)
18.2427 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connection cable, 774-9973/106-805, WAGO
Connecting line with locking latch for power and signal transmission. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
Features
- Saves time, since no wiring is required at the construction site
- With S coding for use in components such as motors or frequency converters
- Rapid, structured electrical installation
Technical specifications
| Cable length | 8 m | |
| Coding | S | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
