774-9973/106-605 | WAGO

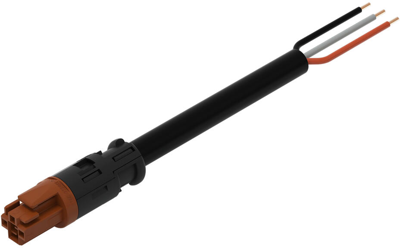

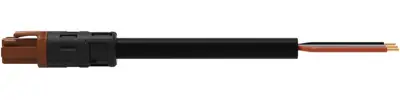

Connection cable, 6 m, socket straight to open end, 1.5 mm², 774-9973/106-605
Unit Price (€ / pc.)
15.6485 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connection cable, 774-9973/106-605, WAGO
Connecting line for signal and power transmission. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. It fits like a glove into boreholes or conduits due to its design.
Features

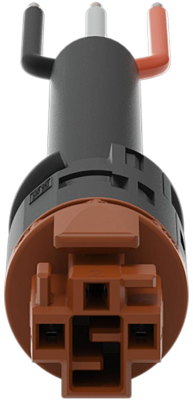

- With S coding for use in components such as motors or frequency converters
- Custom-engineered solutions
- Rapid, structured electrical installation
Technical specifications
| Cable length | 6 m | |
| Coding | S | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
