774-5001/105-000 | WAGO
Y cable, 0.4 m, socket/socket straight to plug/socket straight, 1.5 mm², 774-5001/105-000
Unit Price (€ / pc.)
37.6397 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

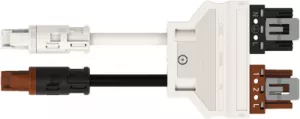

Pre-assembled Y-cable, 774-5001/105-000, WAGO
This Connecting line supports fast, reliable installation. On PCBs, in control cabinets or for connecting lights - pluggable installation connectors allows you to establish connections according to many different requirements in next to no time. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
Features
- With A coding for a great number of uses
- Flexible installation to save space
- Convenient installation and commissioning
Technical specifications
| Version | Y cable | |
| Connection 1 design | straight | |
| Connection (1) | socket/socket | |
| Cable length | 0.4 m | |
| Connection 2 design | straight | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | plug/socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
