771-9995/206-701 | WAGO

Connection cable, 7 m, plug, 5 pole straight to open end, 1.5 mm², 771-9995/206-701

Order No.: 45P4133
EAN: 4044918274241
MPN:
771-9995/206-701
Series: WINSTA MIDI

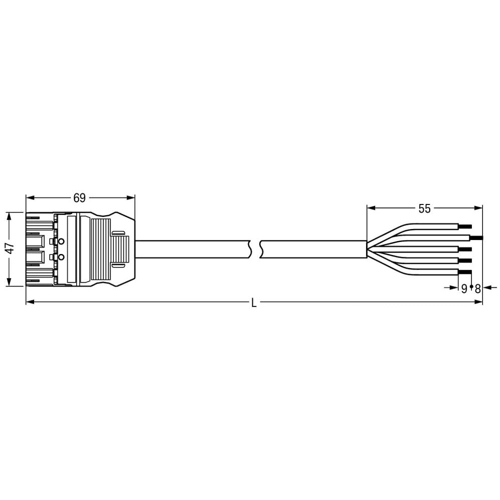

771-9995/206-701 WAGO Pre-assembled Connector Systems Image 1
771-9995/206-701 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
21.7413 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.7413 €

Connecting line, 771-9995/206-701, WAGO

WINSTA MIDI Connecting line allows flexible, error-free installation in numerous applications. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Thanks to the included test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.

The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Use of this pre-assembled system reduces assembly times and errors during installation at the construction site.

Features

  • Protection against mismating eliminates errors
  • With A coding for a large number of applications
  • Ready to install and use immediately
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection (2) open end
Cable cross-section 1.5 mm²
Version connection line
Coding A
Cable length 7 m
Connection 1 design straight
Connection (1) plug, 5 pole
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
