771-9994/206-701 | WAGO

Connection cable, 7 m, plug, 4 pole straight to open end, 1.5 mm², 771-9994/206-701

Order No.: 45P4054
EAN: 4044918273497
MPN:
771-9994/206-701
Series: WINSTA MIDI

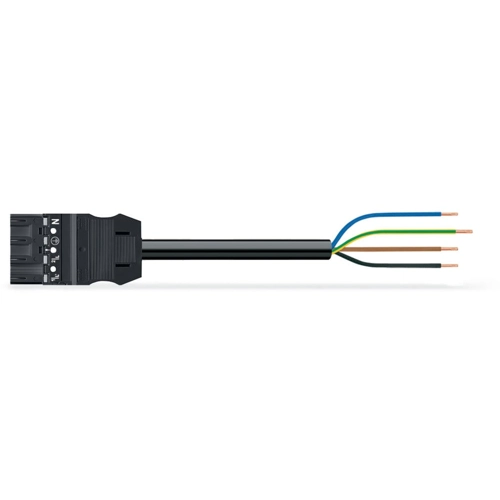

771-9994/206-701 WAGO Pre-assembled Connector Systems Image 1
771-9994/206-701 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
18.2427 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
18.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.2427 €

Connecting line, 771-9994/206-701, WAGO

The WINSTA MIDI Connecting line A coding provides the foundation for installation of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Thanks to the built-in test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and expense.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.

Features

  • Protection against mismating eliminates errors
  • Simple circuits
  • With A coding for a large number of applications
  • Flexible installation to save space
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection (2) open end
Cable cross-section 1.5 mm²
Version connection line
Coding A
Cable length 7 m
Connection 1 design straight
Connection (1) plug, 4 pole
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
