771-9985/216-701 | WAGO

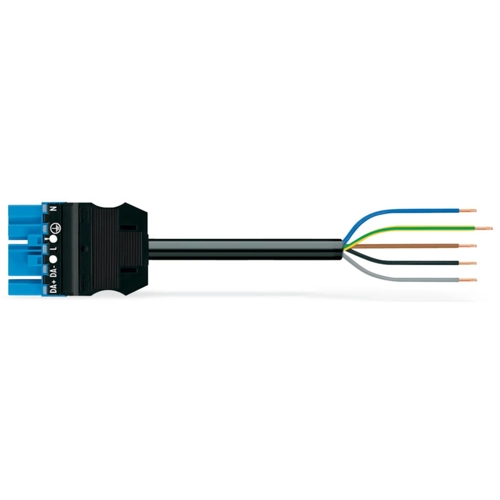

Connection cable, 7 m, plug, 5 pole straight to open end, 1.5 mm², 771-9985/216-701
Unit Price (€ / pc.)
34.7837 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connecting line, 771-9985/216-701, WAGO
WINSTA MIDI Connecting line for signal and power transmission. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Due to the integrated test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and costs.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- Simple circuits
- For lighting management
- Ready for immediate use
- Rapid, structured electrical installation
Technical specifications
| Cable length | 7 m | |
| Coding | I | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
