771-8995/208-101 | WAGO

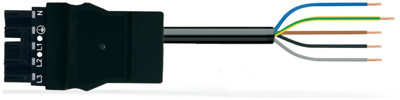

Connection cable, 1 m, plug, 5 pole straight to open end, 4.0 mm², 771-8995/208-101
Connecting line, 771-8995/208-101, WAGO
The WINSTA MIDI Connecting line A coding provides the foundation for installation of solid and fine-stranded conductors. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product has a current rating of 25 A - as a result it is also suitable for high power loads. Due to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Effective protection against mismating
- Simple circuits
- With A coding for a large number of applications
- Flexible installation to save space
- Quick replacement of defective units during ongoing operation
| Cable length | 1 m | |
| Coding | A | |
| Cable cross-section | 4.0 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
