771-6993/217-201 | WAGO

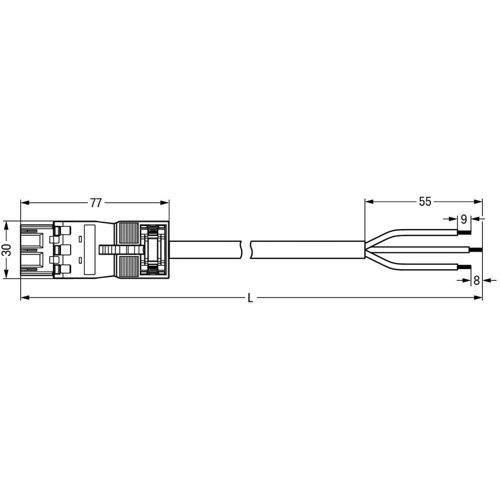

Connection cable, 2 m, plug, 3 pole straight to open end, 2.5 mm², 771-6993/217-201
Connecting line, 771-6993/217-201, WAGO
The WINSTA MIDI Connecting line with protection type IP2XD provides the foundation for installation of fine-stranded and solid conductors. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to make connections according to a huge variety of requirements in no time flat. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The WINSTA MIDI pluggable installation connector with A coding in black or white is usually used for general mains applications in power distribution.
The Connecting line is provided with a plug and a free end. WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Protection against mismating eliminates errors
- With A coding for use in a large number of general mains applications
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, 3 pole | |
| Connection 1 design | straight | |
| Cable length | 2 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
