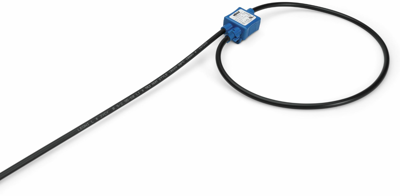

The Rogowski coil is a closed-air coil with non-magnetic split core, placed around a conductor or a current bar.
The magnetic field produced by the AC current flowing through the conductor induces an output voltage in the coil.
This measurement procedure provides galvanic isolation between the primary circuit (power) and secondary circuit (measurement). Easy placement of the Rogowski coils allows existing systems to be retrofitted without time-consuming installation or process interruption.
Features
Version | Rogowski coil | |
Rated current | 4000 A | |

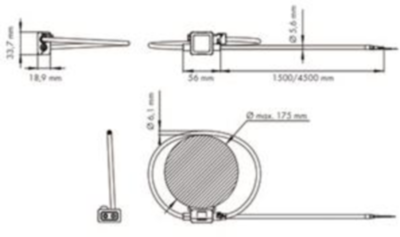

Width | 33.7 mm | |
Weight | 130 g | |
Height | 18.9 mm | |
Depth | 56 mm |
Country of origin | CH |
Customs tariff number | 90303370 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
