855-9150/2000-1751 | WAGO
Rogowski coil, 4000 A, for cables 175 mm, (W x H x D) 33.7 x 18.9 x 56 mm, 855-9150/2000-1751
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
257.9682 € *
Standard delivery time from the manufacturer is: 3 Weeks
Rogowski coil, 855-9150/2000-1751, Wago

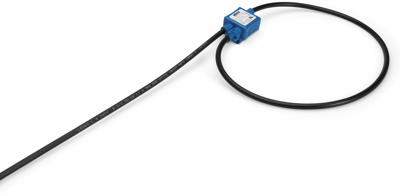

The Rogowski coil is a closed-air coil with non-magnetic split core, placed around a conductor or a current bar.
The magnetic field produced by the AC current flowing through the conductor induces an output voltage in the coil.
This measurement procedure provides galvanic isolation between the primary circuit (power) and secondary circuit (measurement). Easy placement of the Rogowski coils allows existing systems to be retrofitted without time-consuming installation or process interruption.
Features
- Split-core style coil for easy installation
- Ø 125 mm coil aperture for non-contact measurement
- 1.5 m or 3 m output cable
- Insulated plastic case to UL 94-V0

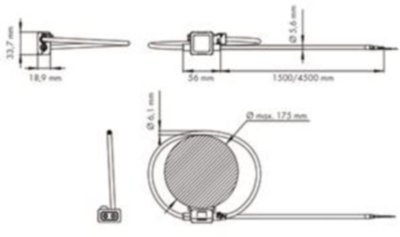

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rogowski coil | |
| Rated current | 4000 A | |
| Cable diameter | 175 mm | |
| Width | 33.7 mm | |
| Height | 18.9 mm | |
| Depth | 56 mm | |
| Weight | 130 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
