750-829 | WAGO

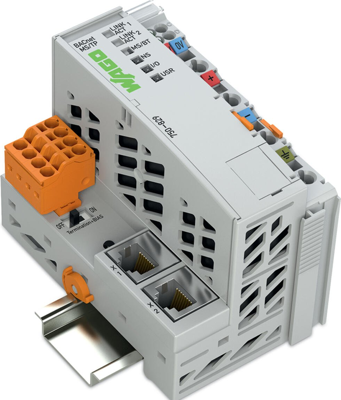

Controller, 750-829, WAGO

The BACnet MS/TP Controller (750-829) connects the WAGO I/O System to the BACnet protocol and supports the B‐BC BACnet device profile per DIN EN ISO 16484‐5. It communicates with other BACnet devices via BACnet MS/TP. The ETHERNET service interfaces can be used for IEC downloads, for example. Furthermore, two ETHERNET interfaces and an integrated switch allow the ETHERNET fieldbus to be wired in a line topology. eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X).

Features

• Native server: For each channel, appropriate BACnet objects are generated automatically for the digital and analog I/O modules that are connected to the controller
• Application server: Other supported BACnet objects can be created via IEC 61131‐3 programming environment and made available to a BACnet network
• Application client: Using the client functionality, objects and their properties can be accessed by other BACnet devices
