805-307/200-604 | WAGO
PCB terminal, 7 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, black, 805-307/200-604
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 805-307/200-604, WAGO
THR PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 7-pole, push-in CAGE CLAMP, 1.50 mm², black.
Features
- THR PCB terminal strips with Push-in CAGE CLAMP connection and push-button actuation
- Push-in termination of solid and ferruled conductors
- Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
- Convenient, tool-free operation
Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-16 | |
| Width | 26 mm | |
| Colour | black | |
| Height | 13.7 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 7 pole | |

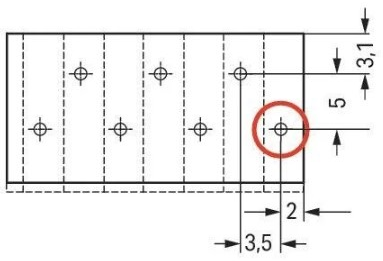

| Grid | 3.5 mm | |
| Depth | 13.6 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
