PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 16 A, cage clamp, yellow, 742-178
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

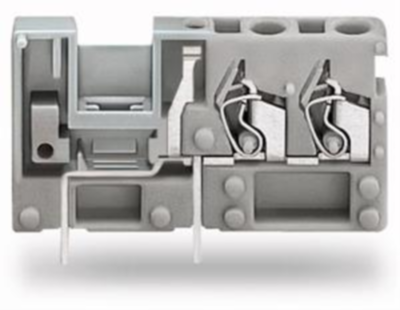

PCB terminal, 742-178, WAGO
Stackable 2-conductor PCB terminal block, with commoning option, 2.5 mm², pin spacing: 5 mm, 1-pole, CAGE CLAMP, 2.50 mm², green-yellow.
Features
- Modular PCB terminal blocks with screwdriver-actuated CAGE CLAMP connection
- Adjacent jumpers for multiplying and distributing potentials
- Test sockets on both sides of fuse for 2.0 mm or 2.3 mm Ø test plugs
- Disconnect and fuse PCB terminal blocks can be combined to form complex function assemblies
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 7 mm | |
| Colour | yellow | |
| Height | 27.2 mm | |
| Contact distance | RM 5/15 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Pin number | 1 pole | |
| Grid | 5 mm | |
| Depth | 34.7 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
