739-162 | WAGO
PCB terminal, 12 pole, pitch 5.08 mm, AWG 28-12, 24 A, cage clamp, orange, 739-162
Images may differ
Total price
( 5.6406 € * / pcs.)
5.64 €
Available: 15 pcs.
Leadtime
Description
PCB terminal, 739-162, WAGO
PCB terminal block, 2.5 mm², pin spacing: 5.08 mm, 12-pole, CAGE CLAMP, 2.50 mm², orange.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Vertical conductor entry and operating direction for space-saving positioning/grouping

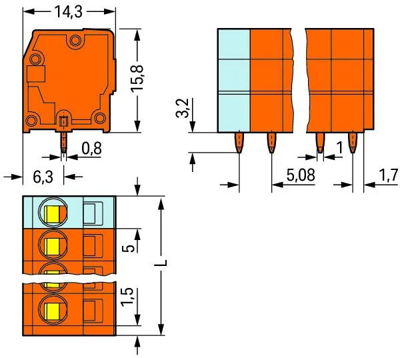

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 62.38 mm | |
| Colour | orange | |
| Height | 19 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 12 pole | |
| Grid | 5.08 mm | |
| Depth | 14.3 mm |
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
What do the green ECAD icons mean
On our category pages and product pages you will find the following green symbols:
Available via download:
- Schematic symbols
- PCB footprints
- 3D models
Available via download:
- Schematic symbols
- PCB footprints
No models are currently available
- Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.
