739-153 | WAGO
PCB terminal, 3 pole, pitch 5.08 mm, AWG 28-12, 24 A, cage clamp, orange, 739-153
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal, 739-153, WAGO
PCB terminal block, 2.5 mm², pin spacing: 5.08 mm, 3-pole, CAGE CLAMP, 2.50 mm², orange.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Vertical conductor entry and operating direction for space-saving positioning/grouping

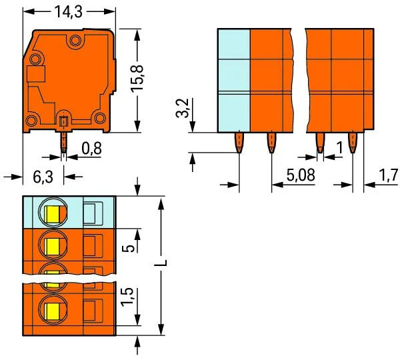

Technical specifications
| Colour | orange | |
| Depth | 14.3 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Width | 16.66 mm | |
| Height | 19 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Pin number | 3 pole | |
| Connection | cage clamp | |
| Rated voltage | 630 V |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
