PCB terminal, 10 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1360

Order No.: 09H774
EAN: 4055143862226
MPN:
2606-1360
Series: 2606
WAGO
default L
front L
Image may differ
Print
Key Specification:
Pin number 10 pole
Grid 12.5 mm
Cable cross-section 6.0 mm²
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
17.3502 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Add to Cart
Total Price:
17.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.3502 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

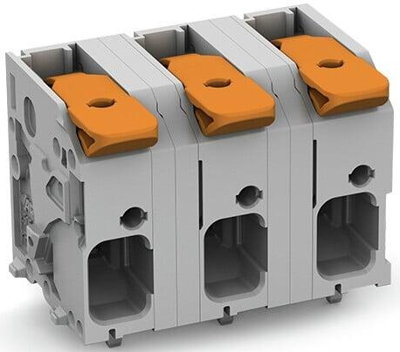

PCB terminal block, 2606-1360, WAGO

PCB terminal block with push-in cage clamp connection and levers, and push-in termination of solid and ferrule conductors. Intuitive, tool-free operation, and several clamping units that can be held open simultaneously, simplifying the connection of multi-core cables. Testing can be performed both parallel and perpendicular to the conductor entry.
Technical specifications
Connection push-in cage clamp
Width 121.5 mm
Colour gray
Height 28 mm
Cable cross-section 6.0 mm²
Rated voltage 1000 V
Rated current 41 A
Pin number 10 pole
Grid 12.5 mm
Show similar products 0
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Cable cross-section
Width
Unit:
Pin number
Grid
Unit:
Height
Unit:
Connection
Colour
Rated voltage
Unit:
AWG cross-section
Rated current
Unit:
1 item in 10 variations
*incl. VAT plus shipping costs
Item description
Total
Cable cross-section
Width
Pin number
Grid
Height
Connection
Colour
Rated voltage
AWG cross-section
Rated current
PCB terminal, 6 pole, pitch 12.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1356
Manufacturer SKU:
 2606-1356
1 pcs. 10.353 €
10.353 €
34 pcs.
10.35 € *
0.2-10 mm²
71.5 mm
6 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
AWG 24-8
41 A
PCB terminal, 5 pole, pitch 12.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1355
Manufacturer SKU:
 2606-1355
1 pcs. 8.6394 €
8.6394 €
40 pcs.
8.64 € *
0.2-10 mm²
59 mm
5 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
AWG 24-8
41 A
PCB terminal, 2 pole, pitch 12.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1352
Manufacturer SKU:
 2606-1352
1 pcs. 3.4034 €
3.4034 €
70 pcs.
3.40 € *
0.2-10 mm²
21.5 mm
2 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
AWG 24-8
41 A
PCB terminal, 10 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1360
Manufacturer SKU:
 2606-1360
1 pcs. 17.3502 €
17.3502 €
0 pcs.
17.35 € *
6.0 mm²
121.5 mm
10 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 11 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1361
Manufacturer SKU:
 2606-1361
1 pcs. 19.0995 €
19.0995 €
0 pcs.
19.10 € *
6.0 mm²
134 mm
11 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 12 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1362
Manufacturer SKU:
 2606-1362
1 pcs. 20.8488 €
20.8488 €
0 pcs.
20.85 € *
6.0 mm²
146.5 mm
12 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 9 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1359
Manufacturer SKU:
 2606-1359
1 pcs. 15.6128 €
15.6128 €
0 pcs.
15.61 € *
6.0 mm²
109 mm
9 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 7 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1357
Manufacturer SKU:
 2606-1357
1 pcs. 12.1618 €
12.1618 €
0 pcs.
12.16 € *
6.0 mm²
84 mm
7 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 8 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1358
Manufacturer SKU:
 2606-1358
1 pcs. 13.8873 €
13.8873 €
0 pcs.
13.89 € *
6.0 mm²
96.5 mm
8 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
PCB terminal, 4 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1354
Manufacturer SKU:
 2606-1354
1 pcs. 7.0567 €
7.0567 €
0 pcs.
7.06 € *
6.0 mm²
46.5 mm
4 pole
12.5 mm
28 mm
push-in cage clamp
gray
1000 V
41 A
