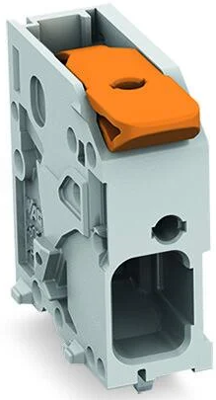

Name: PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1101
Brand: WAGO
SKU: 09H743
Price: 1.54 EUR
Availability: InStock

PCB terminal block, 2606-1101, WAGO

PCB terminal block with push-in cage clamp connection and levers, and push-in termination of solid and ferrule conductors. Intuitive, tool-free operation, and several clamping units that can be held open simultaneously, simplifying the connection of multi-core cables. Testing can be performed both parallel and perpendicular to the conductor entry.

PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1101

Order No.:

09H743

Manufacturer:

WAGO

Manufacturer SKU:

2606-1101

Available: 178 pcs. Leadtime: 3 Weeks **

Total Price: 1.54 € *

1 pcs.

1.5351 €

0.2-10 mm²

10.35 mm

1 pole

gray

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

AWG 24-8

41 A

PCB terminal, 1 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, red, 2606-1101/000-005

Order No.:

09H762

Manufacturer:

WAGO

Manufacturer SKU:

2606-1101/000-005

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.76 € *

1 pcs.

1.7612 €

6.0 mm²

10.35 mm

1 pole

red

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

PCB terminal, 2 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, black, 2606-1102/020-004

Order No.:

09H765

Manufacturer:

WAGO

Manufacturer SKU:

2606-1102/020-004

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.25 € *

1 pcs.

3.2487 €

6.0 mm²

17.85 mm

2 pole

black

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

PCB terminal, 2 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, green-yellow, 2606-1102/020-016

Order No.:

09H766

Manufacturer:

WAGO

Manufacturer SKU:

2606-1102/020-016

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.25 € *

1 pcs.

3.2487 €

6.0 mm²

17.85 mm

2 pole

green-yellow

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

PCB terminal, 1 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, black, 2606-1101/000-004

Order No.:

09H761

Manufacturer:

WAGO

Manufacturer SKU:

2606-1101/000-004

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.82 € *

1 pcs.

1.8207 €

6.0 mm²

10.35 mm

1 pole

black

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

PCB terminal, 2 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, red, 2606-1102/000-005

Order No.:

09H763

Manufacturer:

WAGO

Manufacturer SKU:

2606-1102/000-005

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.25 € *

1 pcs.

3.2487 €

6.0 mm²

17.85 mm

2 pole

red

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

PCB terminal, 2 pole, pitch 7.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1102/000-006

Order No.:

09H764

Manufacturer:

WAGO

Manufacturer SKU:

2606-1102/000-006

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.25 € *

1 pcs.

3.2487 €

6.0 mm²

17.85 mm

2 pole

gray

24.3 mm

7.5 mm

28 mm

push-in cage clamp

1000 V

41 A

Country of origin	DE
Customs tariff number	85369010

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Connection	push-in cage clamp
	AWG cross-section	AWG 24-8
	Width	10.35 mm
	Colour	gray
	Height	28 mm
	Cable cross-section	0.2-10 mm²
	Rated voltage	1000 V
	Rated current	41 A
	Pin number	1 pole
	Grid	7.5 mm
	Depth	24.3 mm
