255-743 | WAGO

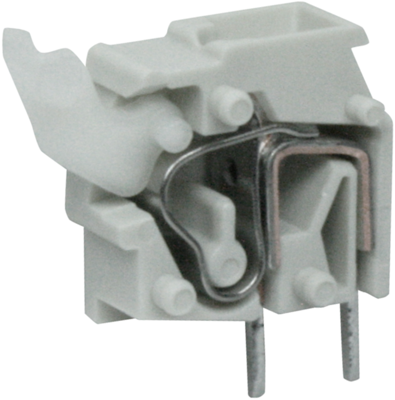

PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, light gray, 255-743

WAGO
default L
default S
Images may differ
Order No.:  08H104
Manufacturer:  WAGO
Manufacturer SKU: 255-743
Manufacturer series:  255
EAN: 4044918662932
about the green icons
Total price
( 0.6069 € * / pcs.)
0.61 €
Available: 100 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
*incl. VAT plus shipping costs
Show 8 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Modular PCB terminal block, Type Wago

In-line single terminals for PCBs, with pusher, 2 solder pins/pole, single-pole, wire entrance at the front, cage clamp terminals, for single-, multi- and fine-wire copper conductors from 0.08 to 2.5 mm², Rated current: 16 A. The grid of terminal block assemblies can be set by compressing (metric grid) or extending (inch grid) the block. The last open terminal can be closed using a snap-on end plate of 1.0 mm thickness. Certifications: UL, CSA, CSM, DEMKO u. a.

5.0/5.08 mm grid.

Rated voltage to EN (degree of soiling): 250 V (3) or 500 V (2).

Type: 255–743, light gray

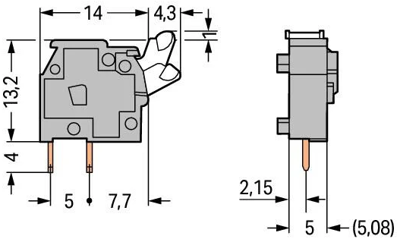

Technical specifications
Connection cage clamp
AWG cross-section AWG 28-12
Width 7.8 mm
Colour light gray
Height 18.2 mm
Contact distance RM 5/5.08
Cable cross-section 0.08-2.5 mm²
Rated voltage 320 V
Rated current 24 A
Pin number 1 pole
Grid 5 mm
Depth 18.3 mm
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Unit
Grid
Unit
Colour
Rated voltage
Unit
Contact distance
Cable cross-section
Depth
Unit
Pin number
Height
Unit
Connection
AWG cross-section
Rated current
Unit
Search results: 1 item in 8 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Width
Grid
Colour
Rated voltage
Contact distance
Cable cross-section
Depth
Pin number
Height
Connection
AWG cross-section
Rated current
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 255-401
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 255-401
Order No.:
 08H100
Manufacturer:
 WAGO
Manufacturer SKU:
 255-401
5.59 € *
10 pcs.
0.5593 €
100 pcs.
0.4879 €
500 pcs.
0.4403 €
1000 pcs.
0.4165 €
Available: 2,009 pcs.
Leadtime
7.8 mm
5 mm
gray
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, orange, 255-746
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, orange, 255-746
Order No.:
 08H108
Manufacturer:
 WAGO
Manufacturer SKU:
 255-746
0.56 € *
1 pcs.
0.5593 €
10 pcs.
0.4879 €
50 pcs.
0.4403 €
100 pcs.
0.4165 €
500 pcs.
0.3927 €
Available: 1,139 pcs.
Leadtime
7.8 mm
5 mm
orange
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, dark gray, 255-742
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, dark gray, 255-742
Order No.:
 08H102
Manufacturer:
 WAGO
Manufacturer SKU:
 255-742
0.61 € *
1 pcs.
0.6069 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
Available: 93 pcs.
Leadtime
7.8 mm
5 mm
dark gray
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 7.5 mm, AWG 28-12, 24 A, cage clamp, gray, 255-501
PCB terminal, 1 pole, pitch 7.5 mm, AWG 28-12, 24 A, cage clamp, gray, 255-501
Order No.:
 08H112
Manufacturer:
 WAGO
Manufacturer SKU:
 255-501
0.64 € *
1 pcs.
0.6426 €
10 pcs.
0.5236 €
50 pcs.
0.4760 €
100 pcs.
0.4522 €
500 pcs.
0.4284 €
Available: 0 pcs.
Leadtime
10.3 mm
7.5 mm
gray
630 V
RM 7.5/7.62
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, light gray, 255-743
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, light gray, 255-743
Order No.:
 08H104
Manufacturer:
 WAGO
Manufacturer SKU:
 255-743
0.61 € *
1 pcs.
0.6069 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
Available: 100 pcs.
Leadtime
7.8 mm
5 mm
light gray
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, blue, 255-744
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, blue, 255-744
Order No.:
 08H106
Manufacturer:
 WAGO
Manufacturer SKU:
 255-744
0.61 € *
1 pcs.
0.6069 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
Available: 262 pcs.
Leadtime
7.8 mm
5 mm
blue
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, light green, 255-747
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, light green, 255-747
Order No.:
 08H110
Manufacturer:
 WAGO
Manufacturer SKU:
 255-747
0.61 € *
1 pcs.
0.6069 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
Available: 91 pcs.
Leadtime
7.8 mm
5 mm
light green
320 V
RM 5/5.08
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 255-601
PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 255-601
Order No.:
 08H124
Manufacturer:
 WAGO
Manufacturer SKU:
 255-601
0.46 € *
100 pcs.
0.4641 €
Available: 0 pcs.
Leadtime
12.8 mm
10 mm
gray
1 kV
RM 10/10.16
0.08-2.5 mm²
18.3 mm
1 pole
18.2 mm
cage clamp
AWG 28-12
24 A
