250-505/000-012 | WAGO

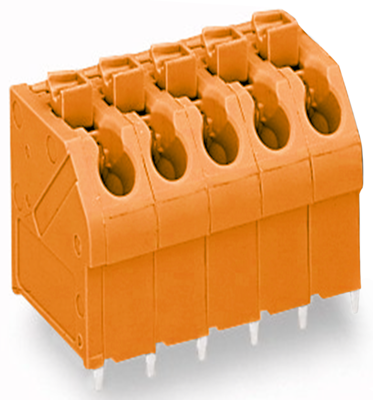

PCB terminal, 5 pole, pitch 5 mm, AWG 20-14, 17.5 A, push-in cage clamp, orange, 250-505/000-012
Unit Price (€ / pc.)
1.5589 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5589 €
10 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 250-505/000-012, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 5 mm, 5-pole, push-in cage clamp, 1.50 mm², orange.
Features
- Compact PCB terminal strips with push-buttons
- Push-in termination of solid conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring
Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 20-14 | |
| Width | 26.5 mm | |
| Colour | orange | |
| Height | 20.5 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Depth | 13 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
