235-406 | WAGO
PCB terminal, 6 pole, pitch 5 mm, AWG 20-14, 24 A, push-in, gray, 235-406
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.4756 €
*incl. VAT plus shipping costs
**Subject to prior sale

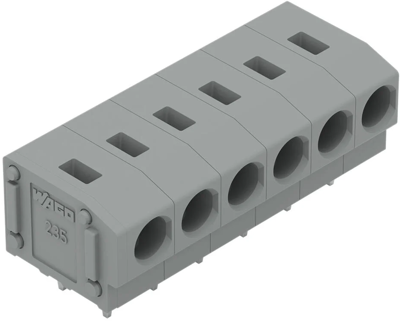

PCB terminal, 235-406, WAGO
PCB terminal block, 2.5 mm², pin spacing: 5/5.08 mm, 6-pole, PUSH WIRE, 2.50 mm², gray.
Features
- Low-profile PCB terminal strips with PUSH WIRE connection for custom terminal strip assemblies
- Push-in termination of solid conductors
- Double solder pins for high mechanical stability
- Conductor removal via screwdriver

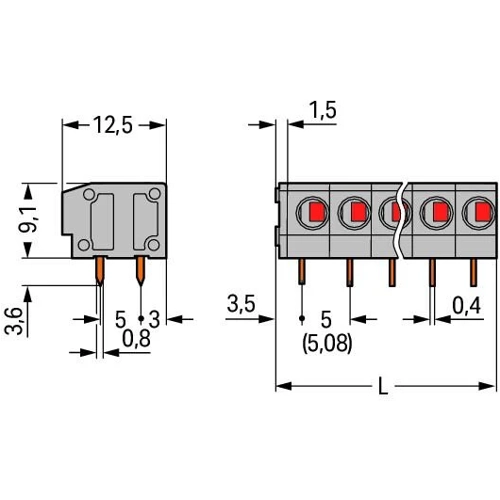

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-14 | |
| Width | 31.5 mm | |
| Colour | gray | |
| Height | 12.8 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 24 A | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
