233-402 | WAGO

PCB terminal, 2 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, orange, 233-402

Order No.: 43P7443
EAN: 4045454049898
MPN:
233-402
Series: 233
WAGO

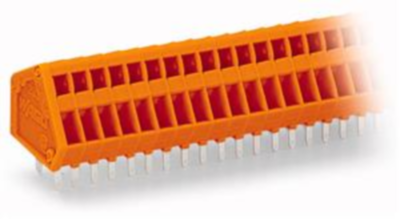

233-402 WAGO PCB Terminal Blocks Image 1

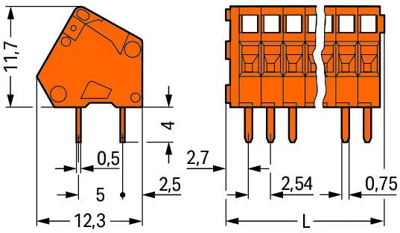

233-402 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7735 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 233-402, WAGO

PCB terminal block, 0.5 mm², pin spacing: 2.54 mm, 2-pole, CAGE CLAMP, 0.50 mm², orange.

Features

  • Compact terminal strips with CAGE CLAMP connection and screwdriver actuation parallel or perpendicular to conductor entry
  • Double solder pins for high mechanical stability
Technical specifications
Connection cage clamp
AWG cross-section AWG 28-20
Width 7.38 mm
Colour orange
Height 15.7 mm
Contact distance RM 2.54/5
Cable cross-section 0.08-0.5 mm²
Rated voltage 160 V
Rated current 6 A
Pin number 2 pole
Grid 2.54 mm
Depth 12.1 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
