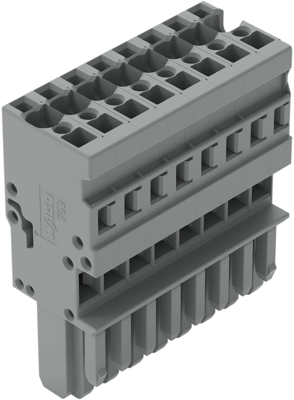

Socket header, 769-108, WAGO

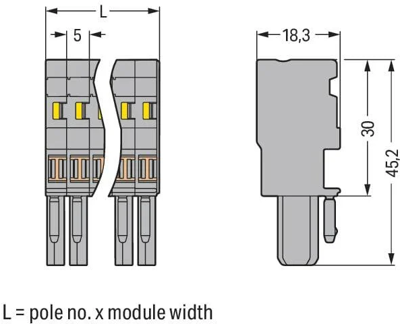

This female connector 769-108 ensures effortless electrical installations. Conductors should only be connected to this female connector if their strip length is between 8 and 9 mm . Pluggable rail-mount terminal blocks are primarily found in switchgear units and control systems, most notably in railroad technology. These innovative systems combine the benefits of rail-mount terminal blocks and connectors for a flexible and reliable wiring system. You also have the option of pre-assembling installations, which not only makes production but also installation, operation, and maintenance more efficient and cost-effective. This product features conductor terminals and utilizes CAGE CLAMP. Our tried-and-tested universal connection known as CAGE CLAMP leads the way when it comes to connection technology and electrical interconnections. The dimensions are 40 x 45.2 x 18.3 mm. Depending on the conductor type, this female connector is designed for conductor cross sections ranging from 0.08 mm² to 4 mm².
